Note:

• Not compatible with the stock SCX30 Radio. A transmitter and receiver with a CH2 port are required
• Please use 2S LiPo!

Features:

• Is meticulously tailored for RC crawlers
• Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
• Runs quieter than brushed systems, with reduced motor noise
• Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds

ESC Specifications:

• Continuous Current: 25A
• LiPo Cells: 2S LiPo
• BEC Current: 1A
• Output: 5.0V
• Dimensions (L×W×H): 25.5×15×12mm
• Weight: 0.34oz (9.5g)
• Waterproof: Yes

Motor Specifications

• Model Number: 1621
• Motor Type: Sensorless Brushless Outrunner
• Operating Voltage: 7.4V (2S LiPo)
• Motor Connectors: PH2.0 3-pin
• Dimensions: Φ15.5×21.5mm
• Motor Output Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 11T
• Lead Length: 65mm
• Weight: 14.9g
• Waterproof: Yes

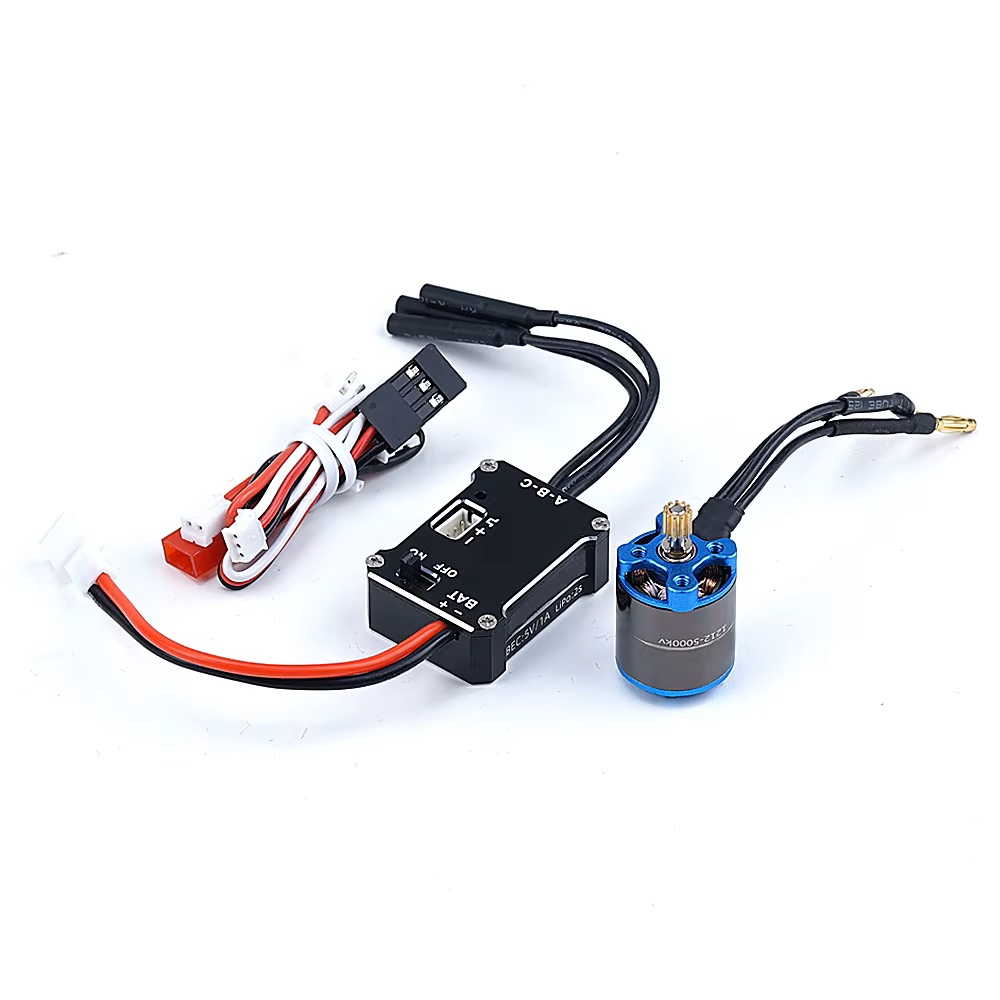

Package List:

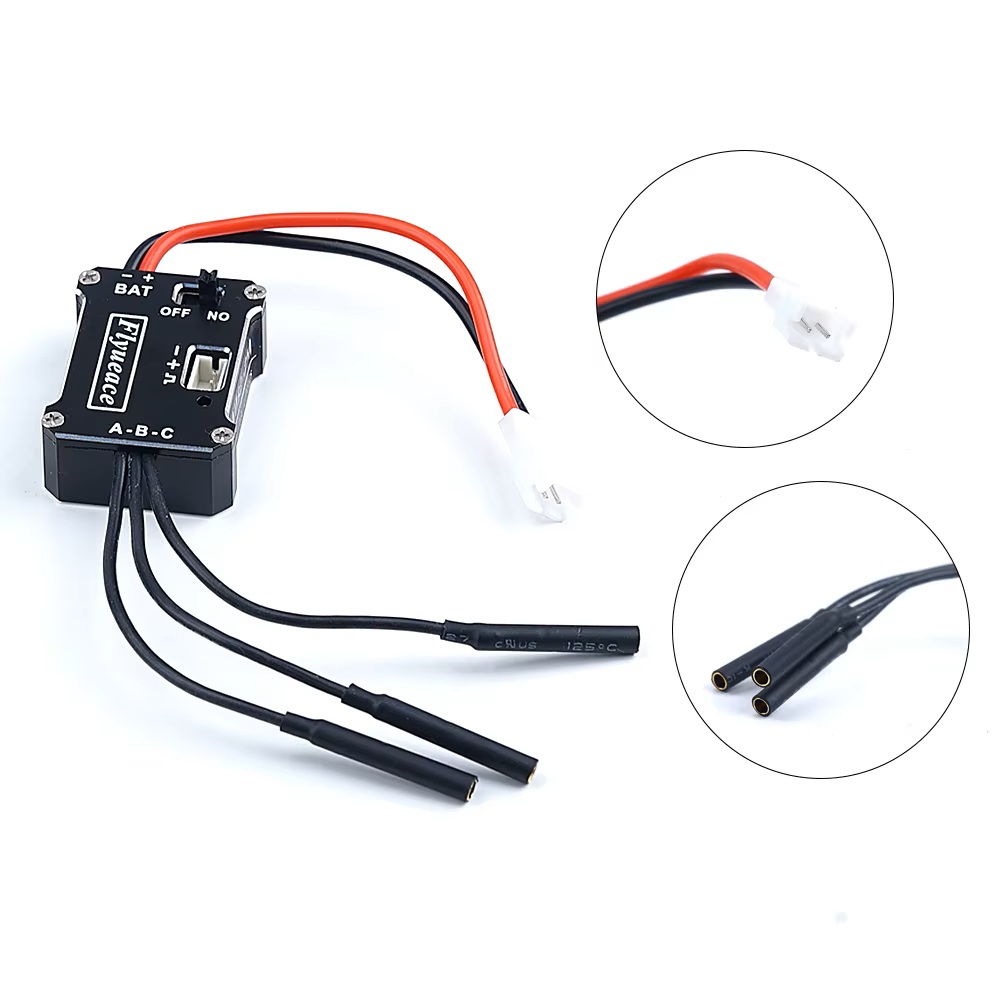

• 1 * MBL32-NANO Brushless ESC
• 1 * 1621 Brushless Motor

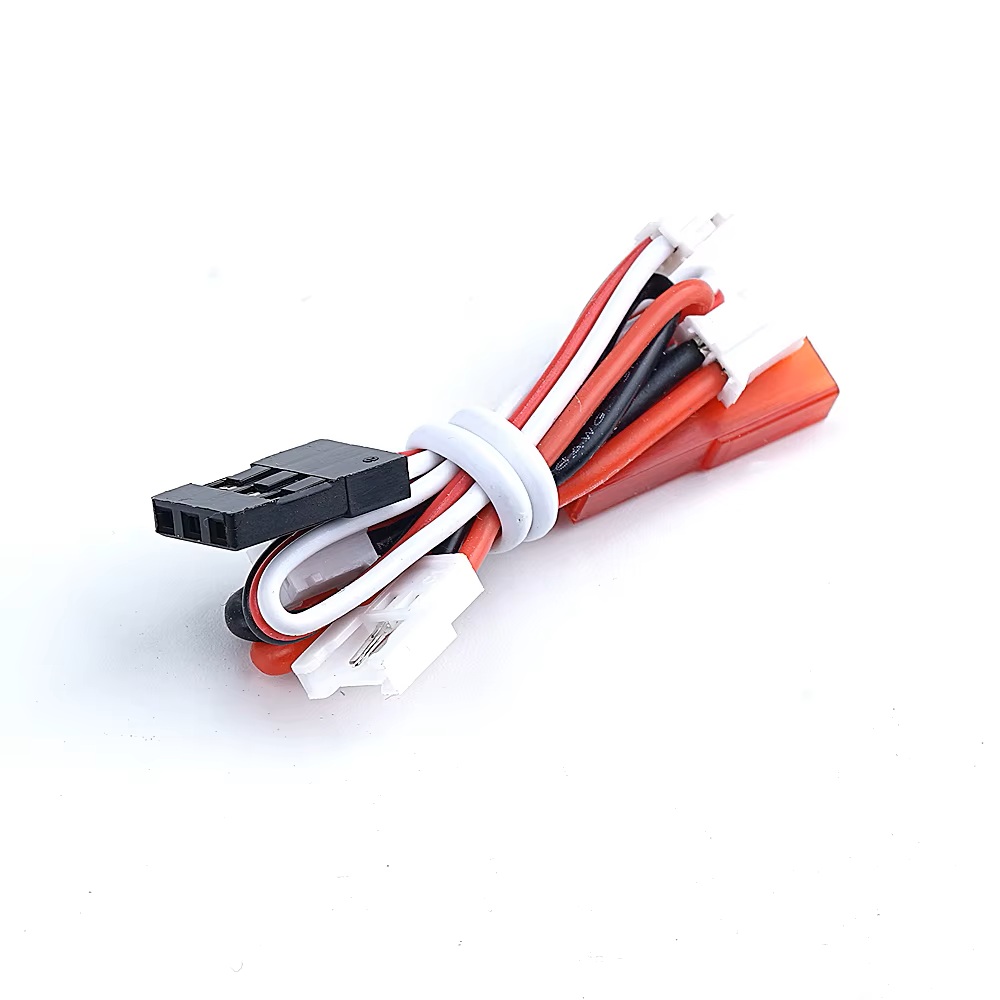

• 1 * Receiver Connector Cable
