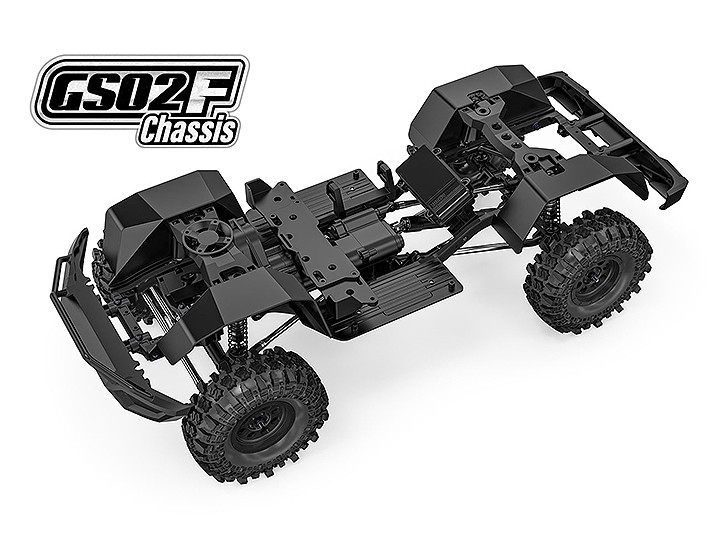

Description
GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping.
Also, steel parts are black powder coated finish to prevent rust.
Inner Fenders
The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.

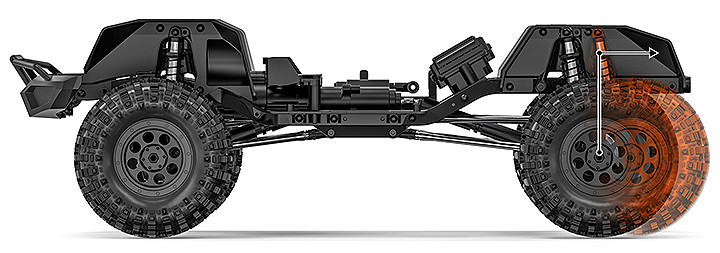

Adjustable Wheelbase
GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)
Front Weight Balance
GS02F's weight balance designed to be placed on the forward of the chassis.
This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.
Front Mounted Motor
Able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to mounted in front of the chassis, so it can increases more tire traction to the front side.
Multiple Battery Locations
GS02F can use all sizes of lipo batteries and Ni-MH batteries, and can be freely locate the battery position purpose of uses.
Chassis Mounted Servo System with Panhard Bar
GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.
Drivelines
The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.
Transmission
The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.
Overdrive
Overdrive means, front and rear wheels rotate at the different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.
Better Steering Radius
Vehicles with overdrive on the front axle has an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on the rough surfaces.
Better Climbing
Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.
Torque Twist Reduce Transmission
GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.
The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.

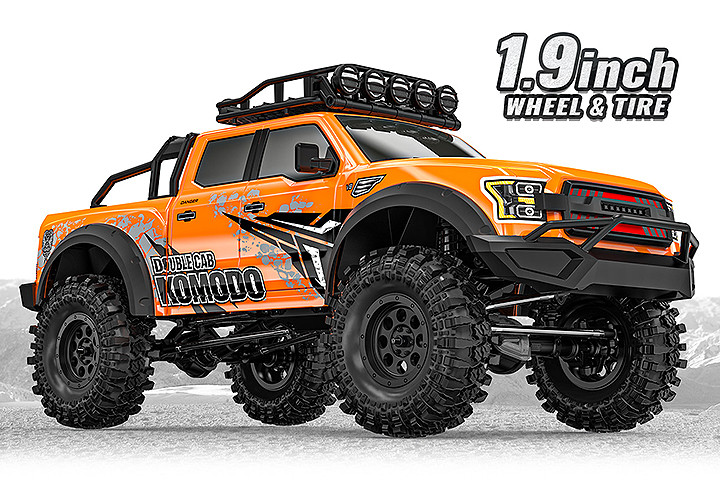

MT-1903 1.9 INCH M/T Off-Road Tire
MT 1903 off-road tire made of super soft compound material provides high traction to the surface.
The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any
uneven road surface.
Features:
Tire Height: 109mm
Tire Width: 40mm
Inner Diameter: 48mm (1.9")
Required To Complete:
Radio Control and Receiver, Servo, ESC, Motor, Battery
https://youtu.be/forRHPDEKMo

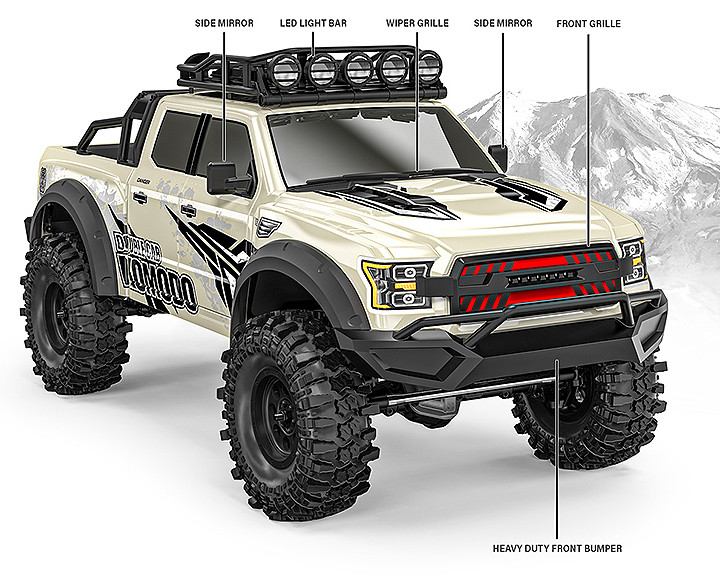

Gmade 1:10 GS02F Komodo Double Cab TS Kit (GM57010)
Steel Ladder FrameGS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping.
Also, steel parts are black powder coated finish to prevent rust.
Inner Fenders
The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.
Adjustable Wheelbase
GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)
Front Weight Balance
GS02F's weight balance designed to be placed on the forward of the chassis.
This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.
Front Mounted Motor
Able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to mounted in front of the chassis, so it can increases more tire traction to the front side.
Multiple Battery Locations
GS02F can use all sizes of lipo batteries and Ni-MH batteries, and can be freely locate the battery position purpose of uses.
Chassis Mounted Servo System with Panhard Bar
GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.
Drivelines
The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.
Transmission
The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.
Overdrive
Overdrive means, front and rear wheels rotate at the different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.
Better Steering Radius
Vehicles with overdrive on the front axle has an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on the rough surfaces.
Better Climbing
Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.
Torque Twist Reduce Transmission
GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.
The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.
MT-1903 1.9 INCH M/T Off-Road Tire
MT 1903 off-road tire made of super soft compound material provides high traction to the surface.
The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any
uneven road surface.
Features:
- 1:10th Scale
- Front Weight Balance
- CMS (Chassis Mounted Steering)
- Link Suspension
- Inner Fender
- 4WD
- Over Drive
- 2 Speed Transmission
- TTR System
Tire Height: 109mm
Tire Width: 40mm
Inner Diameter: 48mm (1.9")
Required To Complete:
Radio Control and Receiver, Servo, ESC, Motor, Battery
https://youtu.be/forRHPDEKMo
GM57010
Gmade 1:10 GS02F Komodo Double Cab TS Kit (GM57010)
£299.99
