Absima Brushed V2 ESC 80A Waterproof Standard ( AB 2100004V2)

• One ESC for all vehicle types (Crawler, Off-road, On-road, Boot)
• Programmable via jumper and separately available programming card (Item: 2110061)
• 2-3S LiPo capable
• Continuous load: 80A
• BEC: 5A / 6.0V

• Initial Start Force: 5%* / 13% / 21% / 29%
• Low V cut-off: 3.1V* / 3.4V / Off
• Crawler Setup - Initial Drag Brake: 100%* / 90% / 80% / 70%
• Standard Setup - Max Brake Force: 50%* / 100% / 75% / 25%
• Max Reverse Force: 50%* / 75% / 100%
• Start Mode (Punch): Medium* / Strong / Soft

• Waterproof and dustproof - suitable for all weather conditions (Clean and dry the ESC after each use to avoid corrosion).
• Specially designed for BRUSHED RC Cars and Crawlers for excellent acceleration and sensitive driving feel.
• Low internal resistance and excellent heat dissipation.
• Multiple protection functions such as low voltage cutoff for LiPo and NiMH batteries, ESC overheat protection and signal loss protection.
• Leicht zu programmieren durch Jumper und Programmierkarte im Taschenformat (separat erhätlich - Art. 2110061)

• Continuous/short time load: 80A/320A
• Resistance: 0.0014ohm
• Motor type: Brushed standard motors
• Battery: 2-3S LiPo / 5-9 cells NiMH
• BEC 6.0V/5A
• Motor Limit 2S LiPo/5-6 cells NiMH: ≥ 11T or <25,000rpm.
• Motor Limit 3S LiPo/7-9 cells NiMH: ≥ 18T or <17,000U/min.

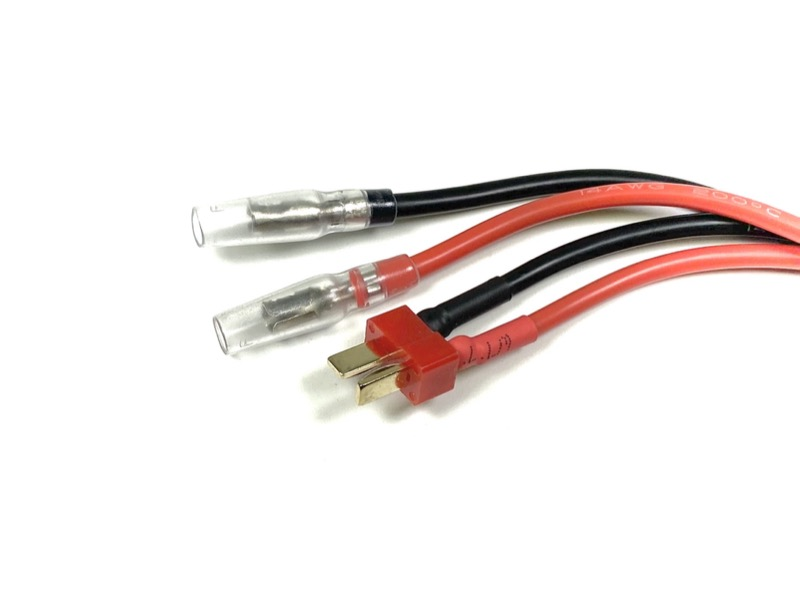

• Cable lengths: BEC: 180mm / Motor: 200mm / Power: 200mm
• Dimensions: 41.5*35*29.5mm
• Weight: 63.4g

• 1:10 Brushed Speed Controller V2

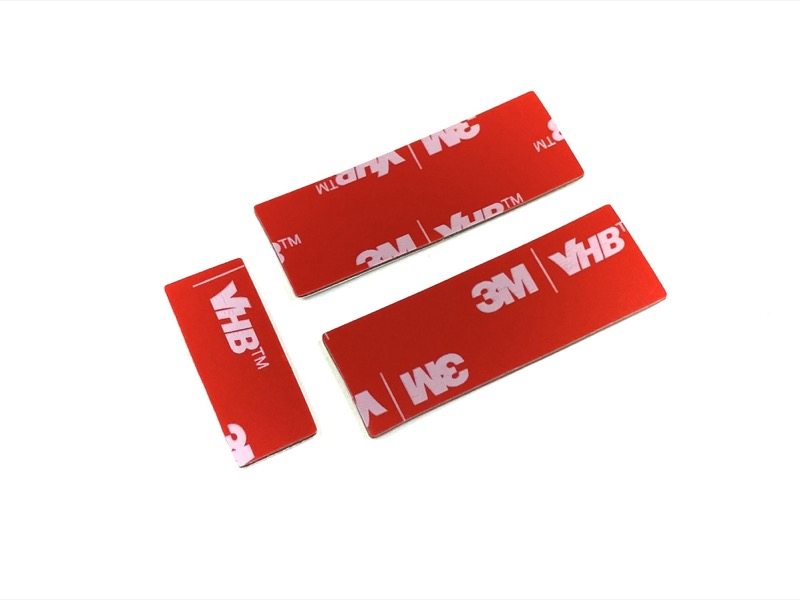

• Adhesive Tape
• Manual
