Absima 1:10 EP Truggy "AT3.4-V2 KIT" 4WD KIT ( AB 12223V2KIT)

The success story continues! We have equipped the AT3.4 "V2" KIT with some new features that take the vehicle to the next evolutionary stage

Some technical changes have been made to our 1:10 Truggy - among other things, the vehicle now comes with LED lighting on the roof

• NEW* Body in new race design

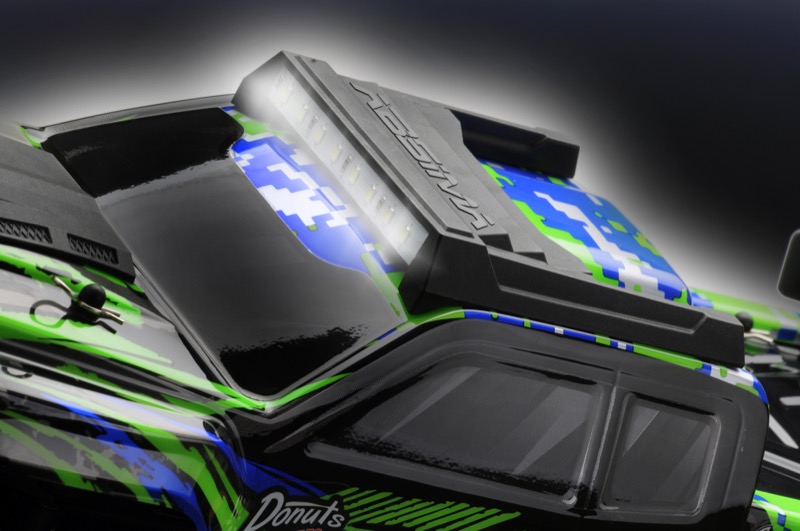

• NEW* LED lighting
• NEW* Downforce rear wing
• NEW* even more tuning parts available

The KIT version is a kit that can be assembled with standard tools such as pliers and screwdrivers. Shock absorbers and gearbox units are already pre-assembled so that even children can build this vehicle under parental supervision. You can also decide for yourself which electronic components should be installed in the vehicle. The kit includes 2 gear units - a copper/plastic version with the gear ratio for brushed motors and a full metal version designed for a brushless drive. This means that there are no limits to the motorization.

• 4WD all-wheel drive
• 4 oil shock absorbers
• Ball bearing main drive
• Extremely durable composite plastic parts
• Steel differential outlets
• Aluminum main drive shaft with steel mounts
• Adjustable upper tie rods
• 5mm aluminum motor mount
• 6mm shock towers
• 2 differentials (front/rear)
• Stylish Truggy body with add-on parts
• "Light-Weight" chassis (less weight - longer driving time)
• Many aluminum tuning parts available

Tec Spec

• Scale 1:10
• Dimensions (L/W/H): 405x325x165 mm
• Weight: 1180g
• Wheelbase: 270mm
• Ground clearance: approx. 35mm
• Track width: 270mm front/rear
• Wheels: Ø 105mm / width: 55mm
• Shock absorber oil: 400CPS
• Installation length of the shock absorbers: 90mm
• Gear ratio BRUSHED version: pinion: 18T / main gear: 64T (module 0.6)
• Gear ratio BRUSHLESS version: pinion: 23T / main gear: 64T (module 0.6)

Includes

• 1/10 Truggy "AT3.4V2" KIT version
• Sticker sheet
• Manual

Required To Complete

• Radio and receiver
• Speed controller and motor (brushed or brushless)
• Steering servo with 25T
• Drive battery (7.2V NiMH or 7.4V/2S LiPo battery)
• Charger (suitable for the drive battery)
• 4* AA batteries for the remote control
